MS6050R23-ATV MemoBike6050 Diagnostic Scan Tool Kit for ATVs
The MemoBike6050 Scan Tool MS6050R23-ATV (formerly known as MOTORSCAN MS6050).
The MEMOBIKE6050 Universal Diagnostic Scan Tool w/ Unlimited Software Updates (endothermic applications only) for ATV/UTV & SxS. Includes 10 cables for Polaris, Suzuki, Yamaha, BRP CAN-AM, Kawasaki, HISUN, Honda, CF MOTO & SEGWAY:
MS510: Kawasaki 4P & 6P Slave Cable
MS458: Kawasaki 4P Slave Cable
MS516: Polaris 8P Slave Cable
MS463: Suzuki 6P Slave Cable, also for Arctic Cat
MS562: HISUN 6P Slave Cable
MS475: Yamaha 3P Slave Cable
MS584: Yamaha CAN 4P Slave Cable
MS481: OBDII Slave Cable for CFMOTO & Segway
MS606: Honda CAN 4P Slave Cable
MS501: BRP/CAN-AM 6P Slave Cable
The MemoBike unlimited software now includes over 100manufacturers and over 7000 models of motorcycles, scooters, and ATVs.A shock-absorbing case is included. The scanner comes in a carrying case with the Master, Battery, Universal, and USB cables.
The scan tool covers the following functions: Ignition, Injection, ABS, Immobilizer/Anti-Theft, Service Resets, Dashboard, Body Computer, Radio/Entertainment System, and RDC/Tire Pressure Monitoring. It is much more than just a code reader!
The ByteRD Diagnostic Scan Tool allows the technician to perform factory service procedures such as re-setting the service light, encoding keys, unlocking and configuring the immobilizer/alarm, making injection adjustments (CO Trimmer), adjusting the throttle valve position sensor (TPS), resetting auto adaptive parameters, and making idle adjustments. The tool displays ECU data that reads stored faults (history) or live data (RPM, battery voltage, throttle angle).
Software covers over 100 major manufacturers’ diagnostic functions. Activated via the internet, and the upgrades are done electronically.
Covers Injection, Ignition, ABS, Immobilizer/Anti-Theft System, Body Computer, etc.
The tool also allows the technician to perform factory service procedures such as:
Reading and Re-setting the service light
Unlocking the immobilizer and configuring the immobilizer/alarm
Making injection adjustments (CO Trimmer)
Adjusting the throttle valve position sensor (TPS)
Re-setting auto-adaptive parameters
Making idle adjustments
The tool displays live data and ECU data reads stored faults (history) or live data (RPM, battery voltage, throttle angle, includes data logger for intermittent fault detection, etc.)
Note: Not all features are available with all brands of motorcycles/ATVs. OEM-style connector cables are required and sold separately.
The ByteRD 6050 Scan Tool is delivered with a full 12-month warranty on parts and labor that automatically starts on the date of shipment of the unit.
The MemoBike6050 Scan Tool is the ultimate Diagnostic Scan Tool for Motorcycles, Dirt Bikes, Scooters, ATVs, and UTVs, with OEM-level coverage of over 100 major brands, 6000 models, and over 16,000 systems. The MS6050 is perfect for independent motorcycle repair shops!
Gain a competitive edge with the faster, more cost-effective, and enhanced diagnostic abilities found in MS6050:
Get more coverage
Stop sending customers away
Offer more service options
Increase the accuracy of diagnostics
See customer satisfaction skyrocket
All of this translates to more and happier customers for your business and the referrals that follow. Service more customers than ever before with MS6050. Improve your diagnostic capabilities and never direct another customer to a dealership again!
Vehicle data information includes connector location & cable identification
Automatic or manual vehicle search modes
ECU / VIN display
Read & reset stored/live fault codes & lights
The fault code database includes code descriptions
Live data display including RPM, battery voltage, throttle angle & more
Component test & activation functions include: injectors, ignition coils, fuel pumps & more
The data logging function includes ECM parameters
Idle, injection, throttle position sensor adjustment
Reset auto-adaptive parameters to zero
ABS air purge & pressure test function
Key encoding/programming & PIN retrieval
Unlock & configure immobilizer/alarm systems
Body, suspension, traction control computer diagnosis

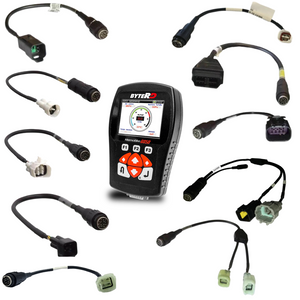

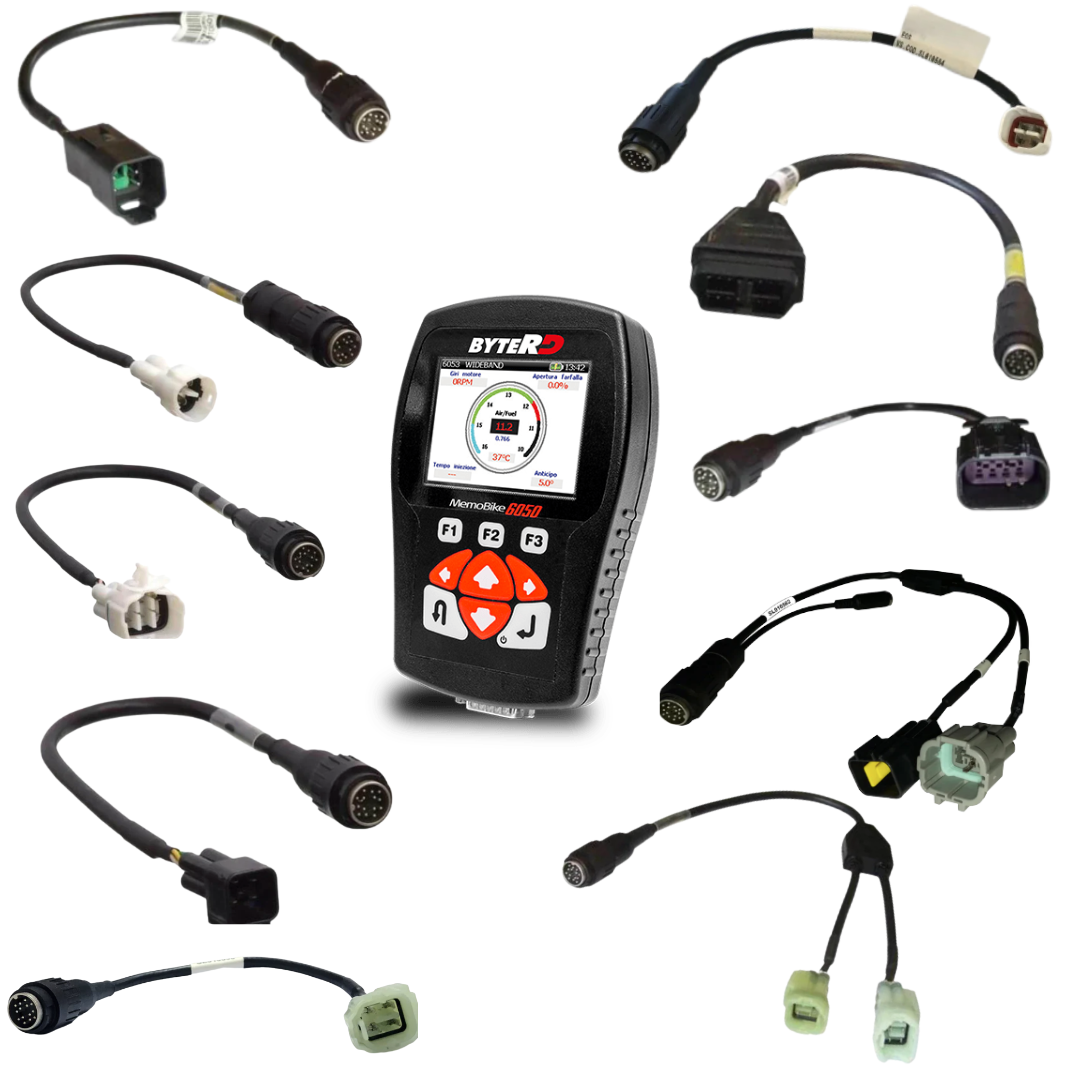

The MS6050R23-ATV Kit comes with the MS6050 handheld scan tool with master software for over 100 brands, a carrying case, shock-absorbing case, master cable, battery clamp cable, universal cable, USB cable, power adapter, and a quick start guide.
In addition to the scan tool, you may need additional OEM-level connector cables. Use our convenientOnline Configurator to build a perfect diagnostic solution below. You will easily identify the cables you will need to service particular models and will get a detailed list of functions covered.
This tool is easy to use and invaluable for small to medium-sized independent workshops like mine, where factory assistance is difficult, if not impossible to source. Checking faults, canceling fault codes, resetting service alerts, etc. are all essential parts of servicing modern motorcycles these days. This tool keeps you up to date with what the manufacturers are developing, provided you keep the information in the tool current. Ansed is on the ball here too.
