Over View

• Combining innovation and ease of use, the ANSED/AUTO600 is designed to meet official test standards
• Analyzes vehicle exhaust in a smoke sample chamber using a near monochromatic visible light source (NMVLS)
• NMVLS allows for a more accurate measurement of vehicle smoke density
• Smoke density displayed in real time on wireless handset

Applications:

• Partial flow tester for Continuous & Peak diesel engine exhaust smoke testing
• Meets recognized accuracy and repeatability standards for cars & light commercial, and commercial.

Features:

• Remote handset with large display & easy operation
• Fully portable & self-powered - Internal rechargeable battery with minimum 3 hours life
• AC & 12v in-vehicle chargers as standard
• Handset connects via wireless or cable
• Peak measurement K (M-1) &; % (HU)
• Self-calibration after each test maintains accuracy
• Document test results with KANE-IRP3 printer, supplied in the kit

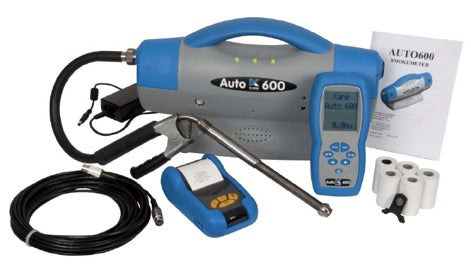

ANSED/AUTO600 Kit Contents:

• Base Unit &Handset
• EPDEA1 High Temperature Exhaust Probe (1m/39” in length)
• SM12993 Neutral Filter
• CA13600-3 In-vehicle 12v charger
• 19603 AC Charger

• KANE-IRP3 Portable Infrared Printer, and paper rolls

• Manual
• In a carrying bag

The Portable Diesel Smokemeter is Ideal for

• Vehicle service & Maintenance
• Pre-compliance testing
• Environmental Monitoring
• Fleet Operators
• PSV Workshops
• Materials Handling Operators
• Marine
• Car & Commercial Vehicle Workshops
• Agricultural Workshops
• Local Authorities
• Print results via infra-red
• printer to verify readings
