5-GAS Automotive Exhaust Gas Analyzer Kit
5-GAS Automotive Exhaust Gas Analyzer Kit
ANSED/KANE-EGA5

5-GAS Automotive Exhaust Gas Analyzer Kit

$4,495.00
IN STOCK
+

It is important that you register your new ANSED products within 30 days after purchase in order to activate the warranty. Fill in the form

California residents: Proposition 65 Information This product may contain chemicals, including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. Read more

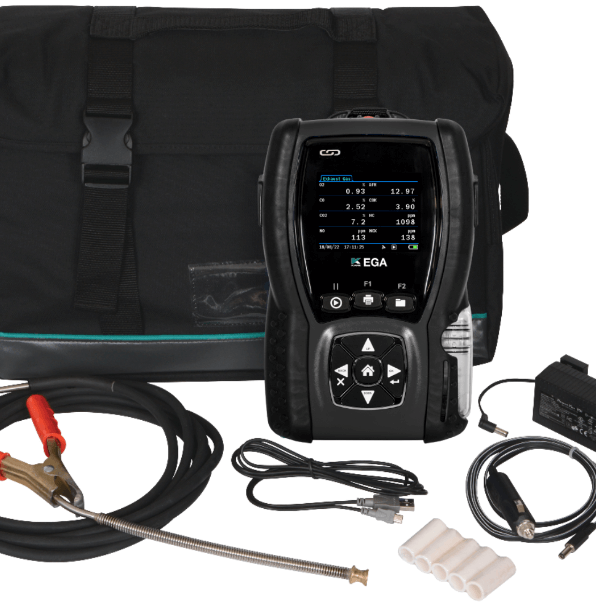

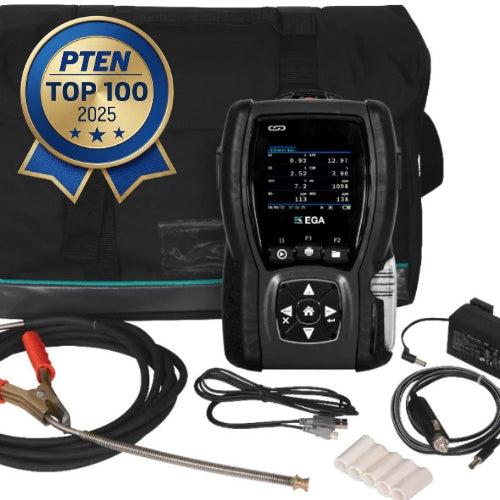

ANSED 5-Gas Diagnostic System Kit includes:

  • KANE 5-Gas EGA5, EP1 Heavy Duty Probe
  • CU12VDC2A21 AC Charger
  • Filters
  • CA10733/4 12V DC Charger
  • CL5 USB cable
  • Manual
  • ANSED Software & KANE LINK Software
  • Soft Shoulder Carry Bag.

The process of diagnosing general performance, drivability, no code and catalytic converter issues can be complex and frustrating. Modern OBDII systems may miss problems too small or infrequent to set a code. In seconds, the Exhaust Gas Analyzer will detect problems too marginal to be detected by an onboard computer or a scan tool.

Experienced technicians agree that an Automotive Exhaust Gas Analyzer is an integral part of their diagnostic toolbox. One quick test of the exhaust gases emitted from the tailpipe helps reduce diagnostic time, verify repairs are complete, reduce comebacks, and increase overall profitability and customer satisfaction.

With the ANSED Exhaust Gas Diagnostics System, there are no more charts and graphs, no more black magic calculations. The ANSED Exhaust Gas Diagnostics Software interprets the exhaust gases and their interactions and provides a top-down list of suggested problems and solutions in order of probability.

And, KANE LINK to connect to KANE LIVE apps and to the optional KANE-IRP3 Infra-red printer.

The ANSED Exhaust Gas Diagnostics System is the most complete and comprehensive solution on the market today.

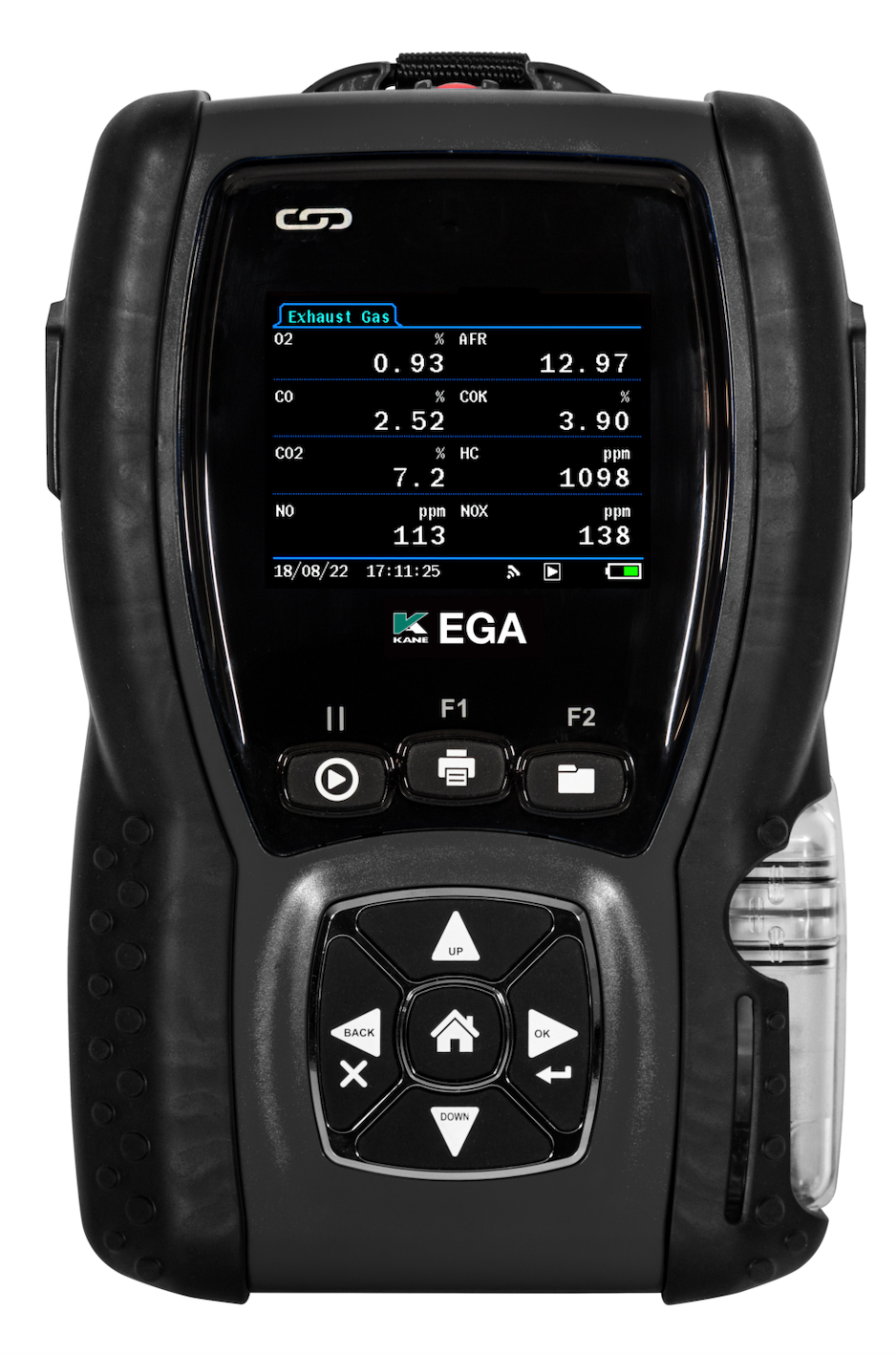

The KANE Gas Analyzer:

  • Tests HC, O2, CO, CO2, NOx and Lambda
  • All readings LIVE, except NOx and LAMBDA calculated
  • Self-calibrating, no cal-gas required
  • Dyno not required for NOx testing

Key Benefits:

  • Completely portable

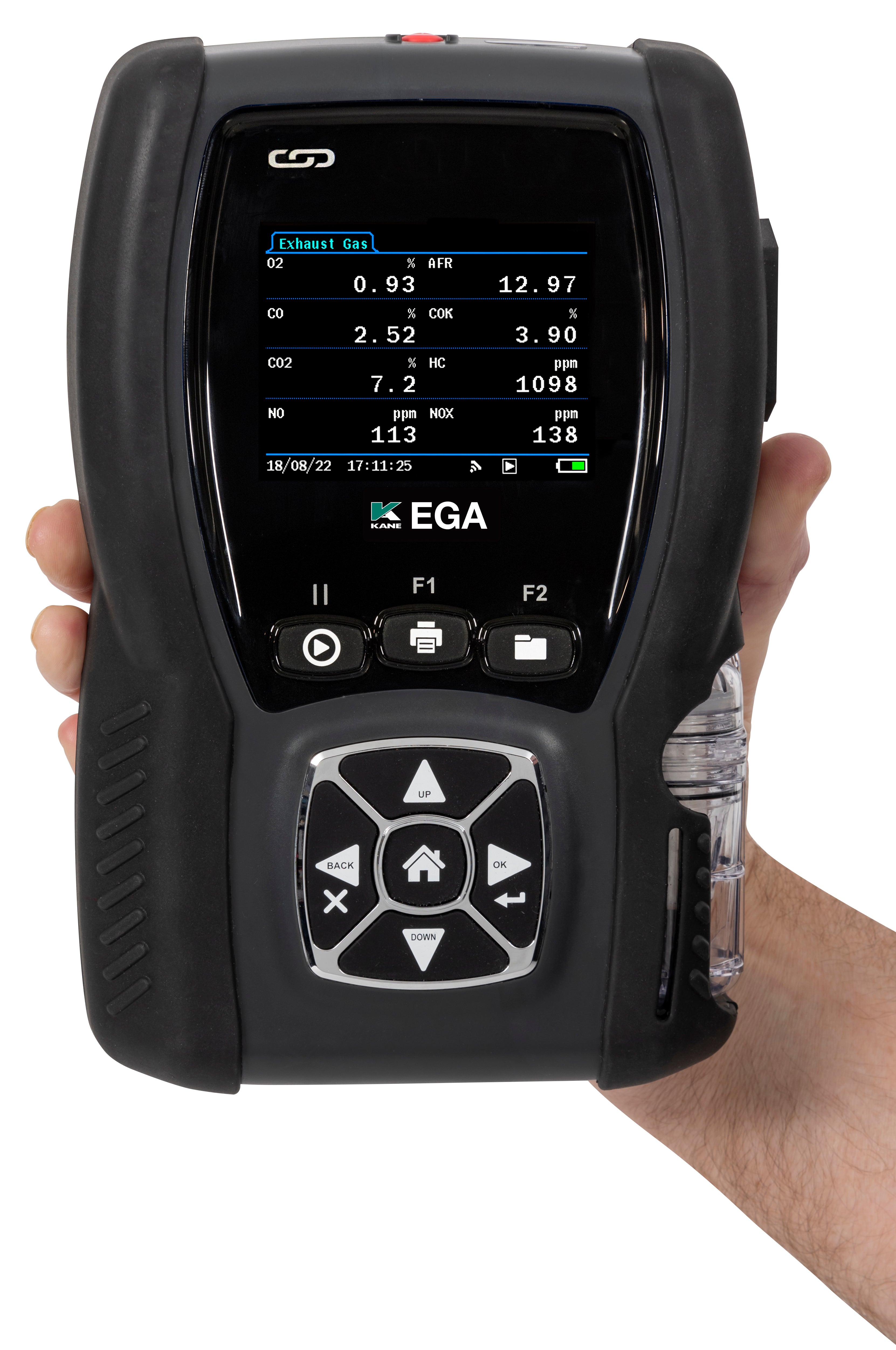

    • Easy to hold in hand
    • Sample exhaust gas in the shop or on a road test
    • NOx testing without a dynometer
  • Low cost to operate and maintain
    • Operates off internal rechargeable battery
    • Self-calibrating, no cal-gas required.
    • Water trap and filter visible
  • Fast diagnostic times

Key Features:

  • Large Graphic Display
    • Easy to read all gases and Lambda on one screen, no scrolling
  • Ergonomic Design Keypad
    • Simple and easy to navigate and use
  • Bluetooth or USB Cable ready
    • Links analyzer easily to PC to use with KANE LINK
  • Variable Pump Speed
    • Allows for adjustment of the pump speed, which can then improve battery life
  • Optional Hi-Speed Print Capability
    • Use with the KANE-IRP3 hi-speed printer with rechargeable battery
  • Probe
    • Equipped with the EP1 Hi-Temperature Probe, with 4m Neoprene tubing, 350mm insertion depth.
  • Technical Specifications
  • ANSED Exhaust Gas Diagnostic Software

Parameter

Resolution

Accuracy

Range

Carbon Monoxide

(High Range NDIR)

0.01 %

+/- 5 % of reading *1


0-10 %


Oxygen

0.01 %

+/- 0.3 % volume *1

0-25 %

Hydrocarbon

(NDIR)

1 ppm

+/- 5 % of reading *1

+/- 12 ppm volume *1

0-5000 ppm

Over-range: 10,000 ppm

Carbon Dioxide

(NDIR)

0.1 %

+/- 0.3% of reading *1

0-20 %

Nitric Oxide*²

(fuel cell)

1 ppm

0-1500ppm +/-5% or 25ppm;

0-5000ppm

Carbon Monoxide

Corrected COK

0.01%

Calculated

0-15%

Lambda

AFR (Petrol)

         (LPG)

0.001

00.01



0.8 – 1.2

11.76 – 17.64

12.48 – 18.72

Sensor response Time

Nominal 20 seconds

Warm up

Less than 2 minutes

Pre-programmed Fuels

Petrol/Gasoline, LPG Diesel and CNG.

PC connection

Via RS 232 port

Data-Logging

200 Tests

Dimensions

Weight

Handset

Probe





1.2 kg (2.65 pounds)

240mm x 165mm x 65mm (9.45 x 6.5 x 2.56”)

Insertion depth 350mm x Diameter 15mm

Clip handle to secure to exhaust, 4m long hose

Various probes available including high temperature

Ambient Operating Range

+5°C to +50°C / 10% to 90% RH non-condensing

Storage temperature

Minimum: 0°C

Maximum: +45°C

Battery Charger

Input:     100-240 V

Output:  12 V DC

Analyzer battery run time

6+ hours from full charge.
